Wiring A House Switch

This circuit is wired with a 2 wire cable running from the light to the switch location. 3 way switch wiring diagram.

How To Wire A Boat Beginners Guide With Diagrams New

Bare Wiring On Back Of Light Switch In House Being

How Do I Identify Six Light Switch Wires With A Multimeter

Hooking up a switch is the essence of simplicity.

Wiring a house switch. This light switch wiring diagram page will help you to master one of the most basic do it yourself projects around your house. Wiring a switch loop when the electrical source originates at a light fixture and is controlled from a remote location a switch loop is used. To connect a wire to a terminal strip off about 12 inch of insulation using a wire stripper and twist the end into a clockwise loop with long nose pliers.

In your switch box you will only have one black one white and one ground wire. Wiring a light switch with the power coming from the lights to the switch is probably the easiest way to wire a switch. The information contained in the videos is intended to give general guidance to simplify diy do.

In this video i show you step by step how to wire a light switch. Whether you have power coming in through the switch or from the lights these switch wiring diagrams will show you the light. The loop must wrap at least two thirds but no more than three quarters of the way around the terminal screw.

Need a light switch wiring diagram. The cable consist of a black wire a white wire and a bare copper wire. You connect the black wires in the electrical box to the switch terminals and the white wires to each other.

With these diagrams below it will take the guess work out of wiring. Basic electrical work can be done by following a few simple steps. Take a closer look at a 3 way switch wiring diagram.

Whenever we flip a switch plug in an appliance or adjust a reading light we interact with the electrical system in a house. Wiring a light switch is not as difficult as you might think it is. When wiring a 2 way switch circuit all youre really doing is controlling the power flow switching offon to the load a light lamp outlet ceiling fan etc now a typical circuit will contain a 3 wire cable known as romex.

The switch also has a green terminal. Hook up the ground wire to the box and then to the switch. If you have the chance wire your lights this way as it is the easiest scenario.

A good electrician can make those interactions easier in a hundred little ways so its best to communicate your needs earlyideally after the house is framed and before the drywall or insulation goes up. This might seem intimidating but it does not have to be. Pick the diagram that is most like the scenario you are in and see if you can wire your switch.

Ccf613 Red Wire Single Pole Switch Diagram Wiring Resources

Correct Wiring For Dual Engines Dual Batteries Each 1 House

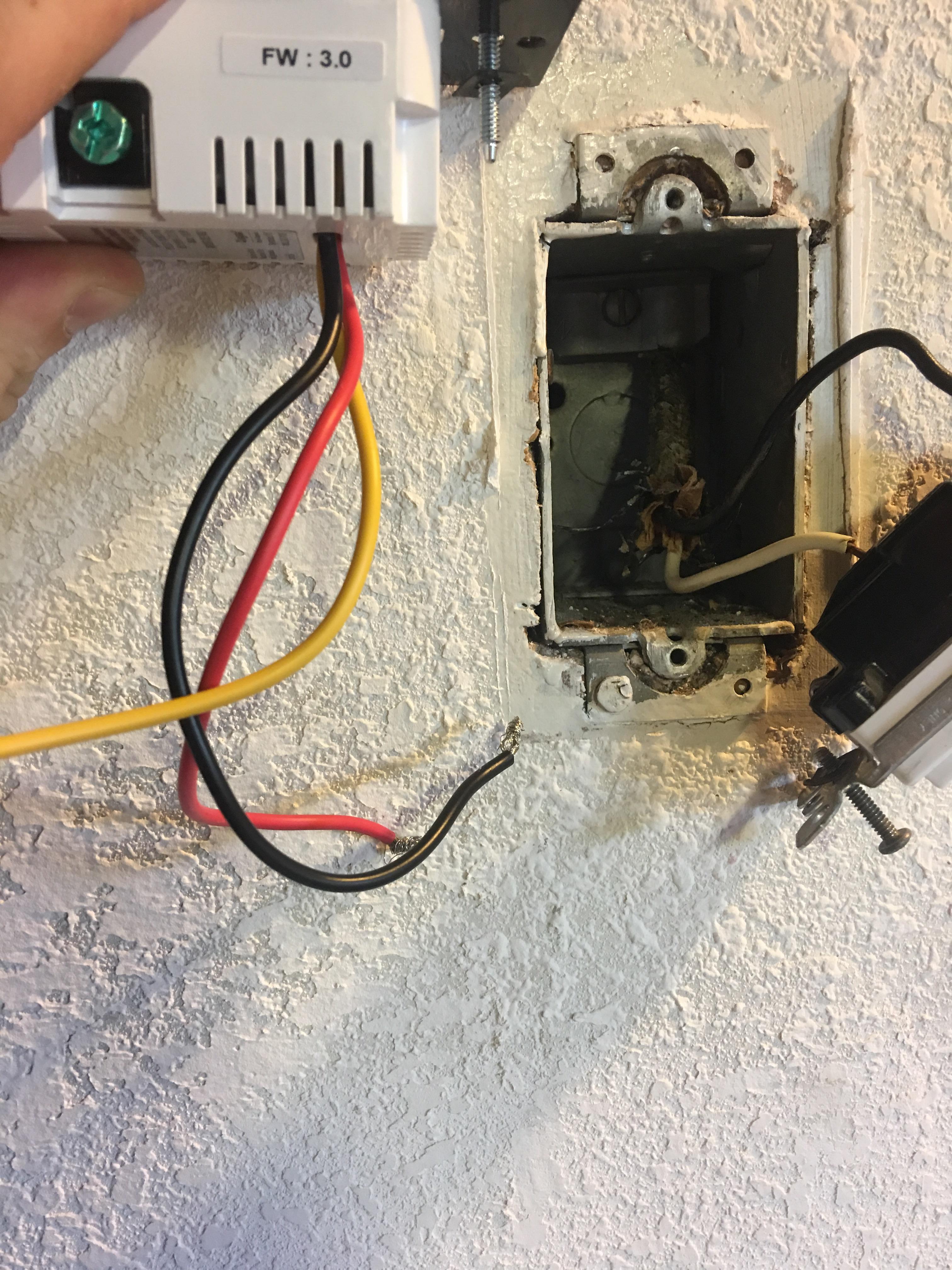

Trying To Add Occupancy Sensor Switch To A 1950 S House
